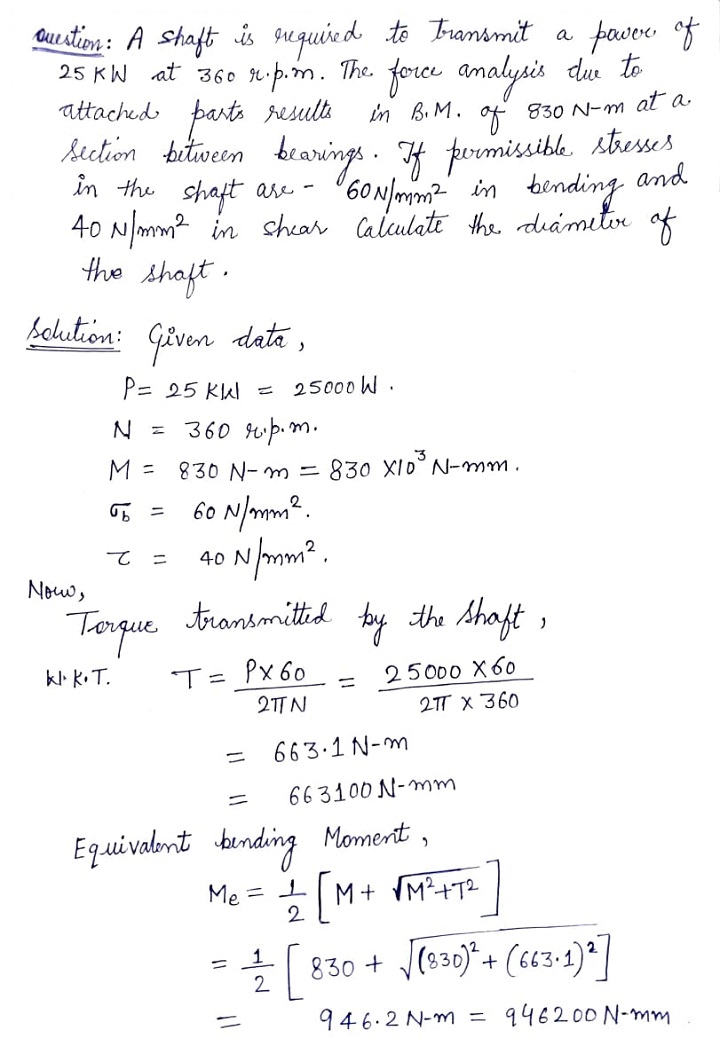

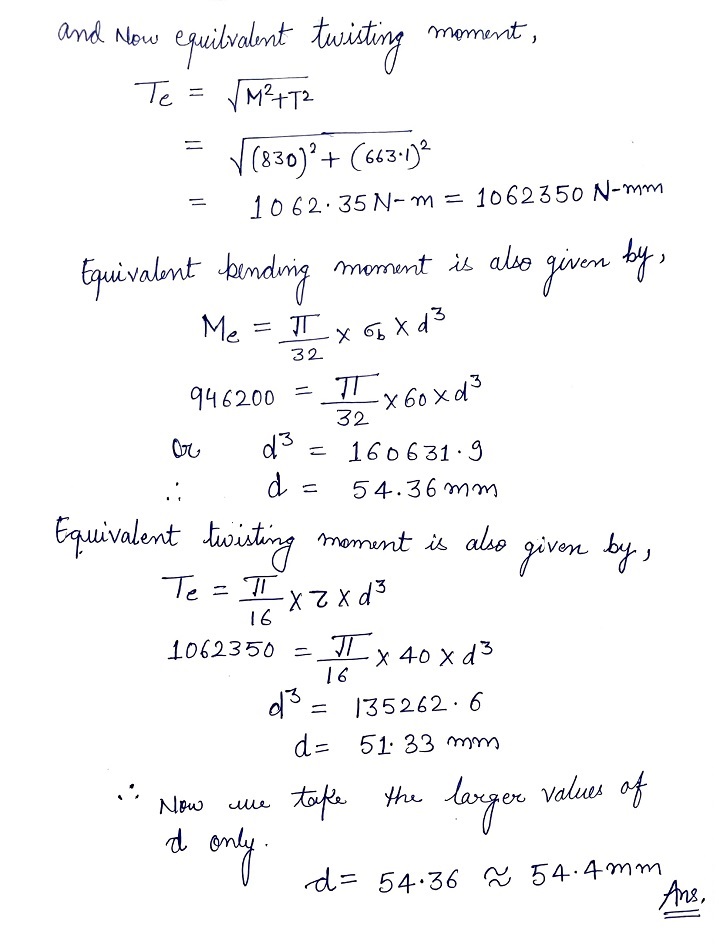

Q .1 A shaft is required to transmit a power of 25 kW at 360 r.p.m. The force analysis due to attached parts results in B.M. of 830 N-m at a section between bearings. If permissible stresses in the shaft are -60 N/mm in bending and 40 N/mm? in shear calculate the diameter of the shaft. (R.G.P.V., June 2016)
![](https://i0.wp.com/mechanic37.com/wp-content/uploads/2020/09/Design-Of-Machine-Elements-numerical-2.jpeg?resize=720%2C1038&ssl=1)
![](https://i0.wp.com/mechanic37.com/wp-content/uploads/2020/09/Design-Of-Machine-Elements-solution.jpeg?resize=720%2C947&ssl=1)
