8 Channel Home Automation System In Hindi
Home Automation system तैयार करेंगें 8 Channel का जिसमे Arduino uno और bluetooth module hc-06 और 8 channel relay board का use होगा इस system को control करने के लिये एक Android app बनाएंगे जो Arduino से जुडी Bluetooth से connect होगा और Arduino को control करेगा जिससे हम Android mobile phone से अपने घर के light,fan,Tv etc. को control कर सकेंगें हम अपने home की 8 चीज़े control कर सकते है इस 8 channel Home Automation system से इस Project को आप अपने engineering की final year Project में ले सकते है क्योंकि यह एक बढ़िया Project है आप अपने नाम से भी mobile app design करवा सकते है comment कर के contact कर सकते है
(adsbygoogle = window.adsbygoogle || []).push({});
इस Project के लिए एक visitor Arshad ने कहा था की मुझे ऐसा करना है उन्होंने यह comment किया था-
“Thanks sir… mujhe app Aur code dono chahiye Aur 8 channel relay.. Bluetooth model.. Arduino board ka connection diagram.. bhi chahiye sir “
|
|
|
Using Material
- Arduino uno
- 8 channel relay board
- hc-06 bluetooth module
- solderless board
- Jumper wire
- Arduino IDE

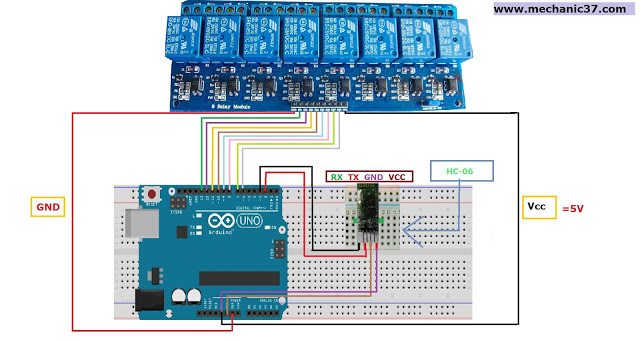

Make 8 relay and Bluetooth Circuit
Arduino+8 channel relay board
Hc-06 Bluetooth+Arduino
- Bluetooth module Hc-06 की Rx-Tx दोनों पिनों को 10,11 से connect करें
- Hc-06 की Vcc pin को Arduino की 5v से connect करें
- Gnd को Arduino की Gnd से connect करें
(adsbygoogle = window.adsbygoogle || []).push({});

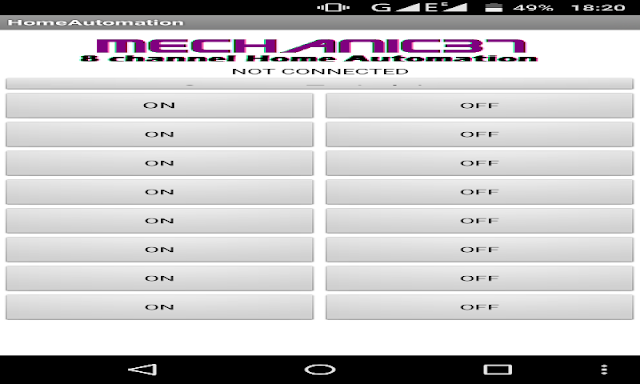

Download 8 relay channel control App
(adsbygoogle = window.adsbygoogle || []).push({});
Hc-06+Android app Bluetooth pairing
Arduino Programming
How To Upload Program
02/11/2016 को मेने इस Sketch को जब पहले लिखा था तब www.mechanic37.com के एक visitor Dharmender Chauhan ने comment किया की इसे varify करने में error आ रहा है तब मेने 9/12/2016 को फिर से इसे लिखा और Update किया
int RELAY_1=13;
int RELAY_2=12;
int RELAY_3=11;
int RELAY_4=10;
int RELAY_5=9;
int RELAY_6=8;
int RELAY_7=7;
int RELAY_8=6;
int bluetoothRx = 10; int bluetoothTx = 11;
SoftwareSerial bluetooth(bluetoothTx, bluetoothRx);
void setup()
{
pinMode(13, OUTPUT);
pinMode(12, OUTPUT);
pinMode(11, OUTPUT);
pinMode(10, OUTPUT);
pinMode(9, OUTPUT);
pinMode(8, OUTPUT);
pinMode(7, OUTPUT);
pinMode(6, OUTPUT);
Serial.begin(9600);
//Setup Bluetooth serial connection to android
bluetooth.begin(9600);
}
void loop()
{
//Read from bluetooth and write to usb serial
if(bluetooth.available())
{
int ONE_BYTE_NUMBER = bluetooth.read();
Serial.println(ONE_BYTE_NUMBER);
if(ONE_BYTE_NUMBER==1){
digitalWrite(RELAY_1, HIGH);
}
if(ONE_BYTE_NUMBER==9){
digitalWrite(RELAY_1, LOW);
}
if(ONE_BYTE_NUMBER==2){
digitalWrite(RELAY_2, HIGH);
}
if(ONE_BYTE_NUMBER==10){
digitalWrite(RELAY_2, LOW);
}
if(ONE_BYTE_NUMBER==3){
digitalWrite(RELAY_3, HIGH);
}
if(ONE_BYTE_NUMBER==11){
digitalWrite(RELAY_3, LOW);
}
if(ONE_BYTE_NUMBER==4){
digitalWrite(RELAY_4, HIGH);
}
if(ONE_BYTE_NUMBER==12){
digitalWrite(RELAY_4, LOW);
}
if(ONE_BYTE_NUMBER==5){
digitalWrite(RELAY_5, HIGH);
}
if(ONE_BYTE_NUMBER==13){
digitalWrite(RELAY_5, LOW);
}
if(ONE_BYTE_NUMBER==6){
digitalWrite(RELAY_6, HIGH);
}
if(ONE_BYTE_NUMBER==14){
digitalWrite(RELAY_6, LOW);
}
if(ONE_BYTE_NUMBER==7){
digitalWrite(RELAY_7, HIGH);
}
if(ONE_BYTE_NUMBER==15){
digitalWrite(RELAY_7, LOW);
}
if(ONE_BYTE_NUMBER==8){
digitalWrite(RELAY_8, HIGH);
}
if(ONE_BYTE_NUMBER==16){
digitalWrite(RELAY_1, LOW);
}
}
}
(adsbygoogle = window.adsbygoogle || []).push({});
8 channel home Automation तैयार है इस Program को upload करने पर Arduino uno से जुडी Bluetooth hc-06 Android phone से connect होने के काबिल होगी अब आपको android mobile phone में app जिसे अपने download किया होगा use launch करें और connect to Arduino के button पर click करें और list में HC-06 पर click करें pair होने पर आप connected का message देखेंगें तब आपका android phone Arduino से connect हो चुका होगा अब on off के button आप press कर सकते है और हम android phone से अपने fan,light,tv control कर सकते है comment या Question कैसे करें
(adsbygoogle = window.adsbygoogle || []).push({});
thanks sir..
thanks sir
but a problem verify karne par end error
C:UsersdharmAppDataLocalTemparduino_modified_sketch_265496sketch_dec09a.ino: In function 'void loop()':
sketch_dec09a:114: error: expected '}' at end of input
}
^
sketch_dec09a:114: error: expected '}' at end of input
exit status 1
expected '}' at end of input
aata h please help me
आप फिर से Program को copy करो इस sketch में error थी मेने अभी solve कर di है जब आप sketch upload कर रहे हो तो Bluetooth module के Rx और Tx pin disconnect रखें और upload होने के बाद connect करे n thanks for comment
thanks sir
sir 8 channel home automation system ka jo app apne android phon ke liye banaya h wo mene download kiya but wo bluetooth se connect nahi hota. bluetooth is ok
my android phon is ok
paring is connect
but app is not connect
when i did press the button (error)
any other app send me link
help me
Dharmender,आप जब भी https://www.mechanic37.com के Projects Read कर रहे हो तो project को अच्छी तरह से read किया करो क्युकी हमे सभी steps को follow करना होता है यदि कोई भी चूक होती है तो project सही तरह से काम नहीं करता या बनता ही नहीं इसलिए आप pair कैसे करें Step को फिर से follow करें aap में सिर्फ connect button ठीक से नहीं बना है और सब सही है hc-06 से जुड़े rx-tx pin को एक दुसरे की जगह change करके देखें
1.Android phone की bluetooth on करें और बिना on किये किसी भी button को press न करें नहीं तो error आयेगा
2.8 relay channel control App launch करें
3.connect button पर click करे 2-4 second रुकें और Hc-06 पर click करें
4.यदि Bluetooth connect हो गई होगी तो hc-06 में लगी led on ही रहेगी वह on-off होना बंद हो जाएगी अब आप button press कर सकते है
इसको test करने के लिए आप Arduino pin 13 से led को connect करें और app में सबसे पहली relay को control करने बाले button press करें led on-off होगी
अपने Project की एक Photo ले कर https://www.mechanic37.com के facebook page पर share करें
Thanks sir
Sir send me other app link
This app is not work without Amazon app
Sir mujhe fan speed OK bhi control Karna h 2 fan ki speed OK
AK asa app chahiye jisme 8 on off button or 2fan ke liye alag alag speed button ho
Sir ye app banana bhi batao
